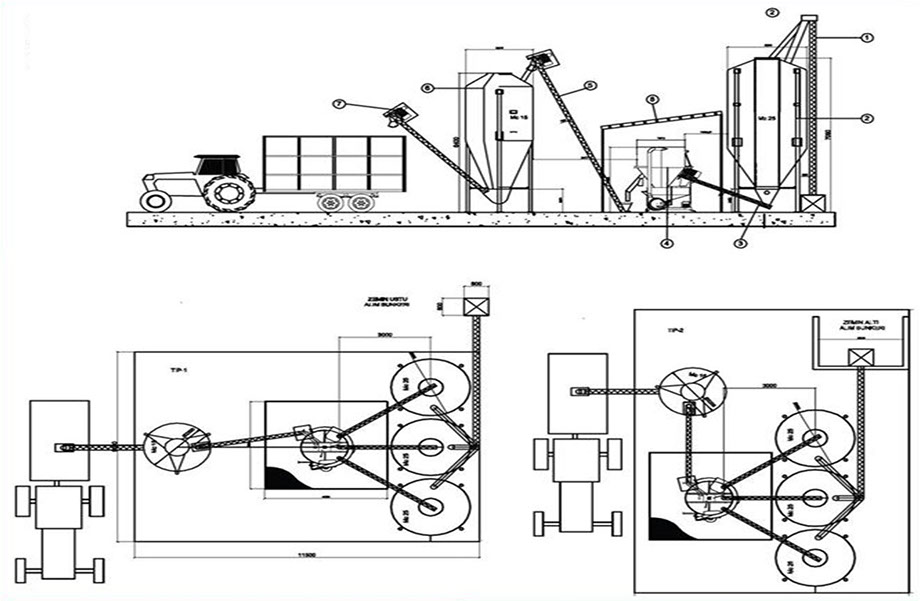

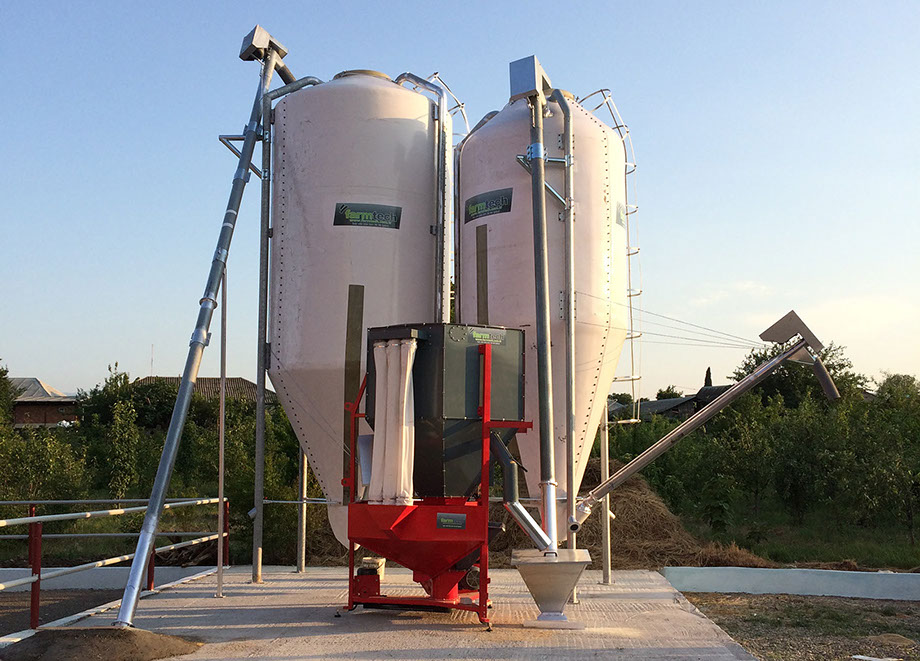

Feed Preparation Plant and Silos

* It will be projected according to the capacity

TECHNICAL SPECIFICATION

Material

Capacity

Ventilation



Loading System

Base Type

Discharge System

Ladder

Discharging Auger Size

Discharging Auger Capacity

Discharging Auger Features

Installed Electrical Power

Silo Fiber Composite, Silo Stand Galvanized. (Made in Italy.)

10m³-70m³

NO. (It does not require ventilation because fiber is not sweating in the warehouses

and does not dampen the material.)

There is an inlet for filling with silobas and on top there is a cover with auger filling.

Fiber Cone, Degree Auger Outlet, Drain Cover.

Cleaning Cover Under the Silo.Manually and With Auger Discharge

Available

4,5 meters

At 70˚ Ø120mm x4,5m 7Tonne/Hour. At  30˚ 12Tonne/Hour.

Hot-Dip Galvanized Coated. Engine Rain Protection Cover.

380 Volt   1,5 kW
